SM-C FIBER

THE BEST SOLUTION FOR TELECOM CONNECTIVITY

Learn more

WHY CHOOSE US?

We manufacture Patchcord and Pigtail covered with after-sale service and warranty

We are committed to our customers

We are in constant search for technological improvements

OUR COMPANY

SM-C is a Fiber Optic products manufacturing company created in 2013. Our team, however, has more than 25 years of experience in the development and manufacture of these materials.

Our goal was clear from the beginning: to provide solutions meeting the increasing demand for improved telecommunication services, either cable, streaming, mobile, Internet, private network, medical equipment, sensor services and any other service requiring Fiber Optics.

With a focus on our customers’ requirements, we work together to develop the product that provides the solution to their needs.
Quality and good service are our main strengths, positioning us as one of the best laboratories in Mercosur, and we are expanding to the Northern Hemisphere, as we have a lab in the US.

The company is constantly on the move, following the evolution of fibers and connectors and developing new ways to leverage these advances so that telecommunications can improve user lives.

Connectors

Customers

Years of experience

OUR PRODUCTS

INDOOR PATCHCORD

Single-Mode Patchcord

900 uM SC/APC sm-std

Manufactured in all sizes, with SC/PC SC/APC LC/PC FC/PC FC/APC E2000/PC E2000/APC ST/PC connectors.
Fiber Type: SM-STD
Fiber Model: T9.652D
Fiber Measurement: Insertion loss: 0.20-0.40
Return Loss <60

Sm-std, SC/APC LC/UPC, 1.6 mm Fiber

Manufactures in all sizes, with 1.6 mm, 2mm and 3mm fibers, with SC/PC SC/APC LC/PC FC/PC FC/APC E2000/PC E2000/APC ST/PC MU/PC connectors.
Fiber type: SM-STD
Fiber Model: T9.652D
Fiber Measurement: Insertion loss: 0.20-0.40
Return Loss <60

Simplex, sm-std, SC/APC LC/UPC, 3mm Fiber

Manufactured in all sizes, with 1.6 mm, 2mm and 3mm fibers, with SC/PC SC/APC LC/PC FC/PC FC/APC E2000/PC E2000/APC ST/PC MU/PC connectors.
Fiber Type: SM-STD
Fiber Model: T9.652D
Fiber Measurement: Insertion loss: 0.20-0.40
Return Loss <60

Duplex, sm-std, SC/APC LC/UPC, 1.6 Fiber

Manufactured in all sizes, with 1.6 mm, 2mm and 3mm fibers, with SC/PC SC/APC LC/PC FC/PC FC/APC E2000/PC E2000/APC ST/PC MU/PC connectors.
Fiber Type: SM-STD
Fiber Model: T9.652D
Fiber Measurement: Insertion loss: 0.20-0.40
Return Loss <60

Interior, sm-std, LC/UPC, 12-wire Multi-Pigtail

Manufactured in all sizes, with 4, 6, 8, 10, 12, 16 and 24 wires, with SC/PC SC/APC LC/PC FC/PC FC/APC E2000/PC E2000/APC ST/PC MU/PC MPO connectors.
Fiber Type: SM-STD
Fiber Model: T9.652D
Fiber Measurement: Insertion loss: 0.20-0.40
Return Loss <60

End A 900 um, End B 1.6 mm Multipatch

Manufactured in all sizes, with 4, 6, 8, 10, 12, 16 and 24 wires, with SC/PC SC/APC LC/PC FC/PC FC/APC E2000/PC E2000/APC ST/PC MU/PC MPO connectors.
Fiber Type: SM-STD
Fiber Model: T9.652D
Fiber Measurement: Insertion loss: 0.20-0.40
Return Loss <60

Multi-Mode Patchcord

Simplex SC-PC – SC/PC Multi-Mode, 62.5, 3mm Patch

Manufactured in all sizes, with 1.6 mm, 2 mm and 3 mm fibers. 62,5/125 OM1, 50/125 OM2, OM3, OM4, OM5.
With SC/PC LC/PC FC/PC ST/PC MU/PC connectors
Measurement: Insertion loss: 0.20 – 0.40
No return

Simplex, LC/PC-E2000/PC, Multi-mode, 50/125 om4 Patch

Manufactured in all sizes, with 1.6 mm, 2 mm and 3 mm fibers. 62,5/125 OM1, 50/125 OM2, OM3, OM4, OM5. With SC/PC LC/PC FC/PC ST/PC MU/PC connectors.
Measurement: Insertion loss: 0.20 – 0.40
No return

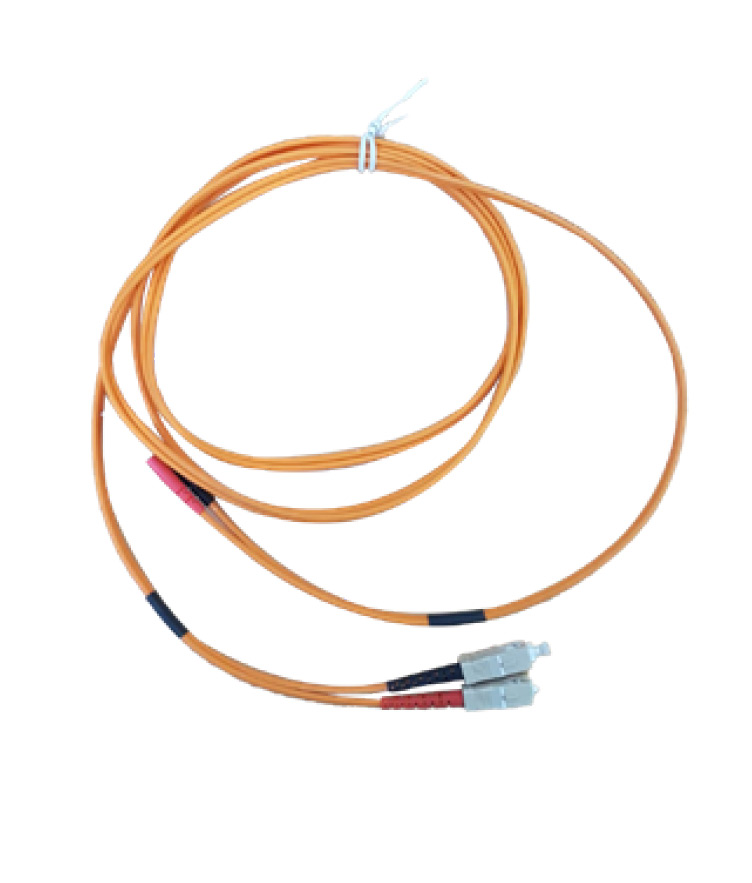

Duplex, SC/PC - LC/PC, Multi- mode, 62,5 3 mm Patch

Manufactured in all sizes, with 1.6 mm, 2 mm and 3 mm fibers. 62,5/125 OM1, 50/125 OM2, OM3, OM4, OM5. With SC/PC LC/PC FC/PC ST/PC MU/PC MTRJ/PC connectors
Measurement: Insertion loss: 0.20 – 0.40
No return

Duplex, Multi-mode, 50/125 om3 Pigtail

Manufactured in all sizes, with 1.6 mm, 2 mm and 3 mm fibers. 62,5/125 OM1, 50/125 OM2, OM3, OM4, OM5. With SC/PC LC/PC FC/PC ST/PC MU/PC MTRJ/PC connectors
Measurement: Insertion loss: 0.20 – 0.40
No return

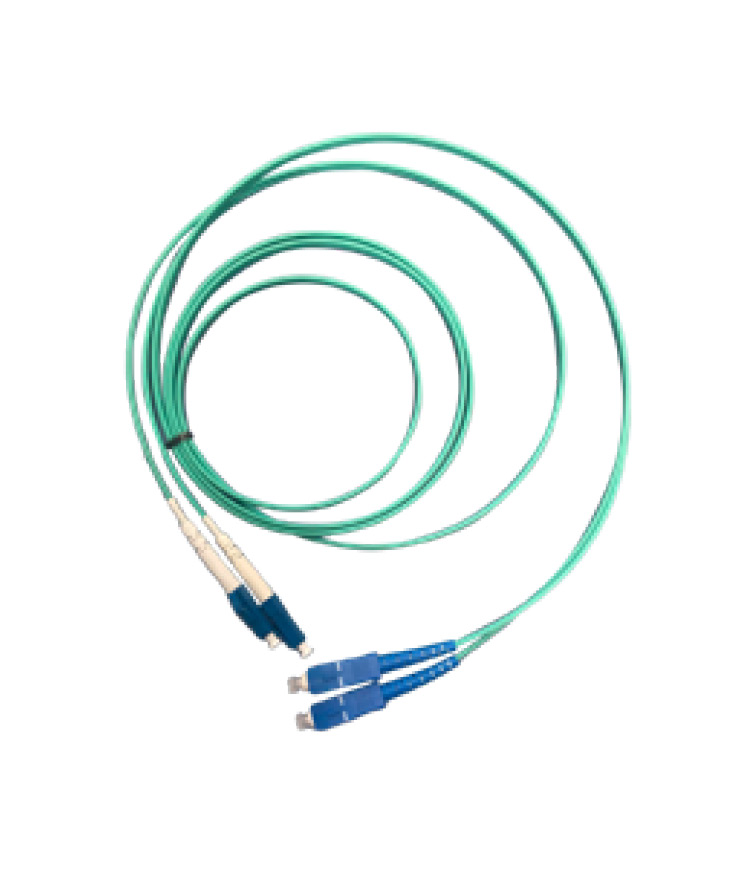

Duplex, LC/PC-SC/PC, MULTI-MODE 50/125 om3 Patch

Manufactured in all sizes, with 1.6 mm, 2 mm and 3 mm fibers. 62,5/125 OM1, 50/125 OM2, OM3, OM4, OM5. With SC/PC LC/PC FC/PC ST/PC MU/PC MTRJ/PC connectors
Measurement: Insertion loss: 0.20 – 0.40
No return

OUTDOOR PATCHCORD

Single-mode Patchcord

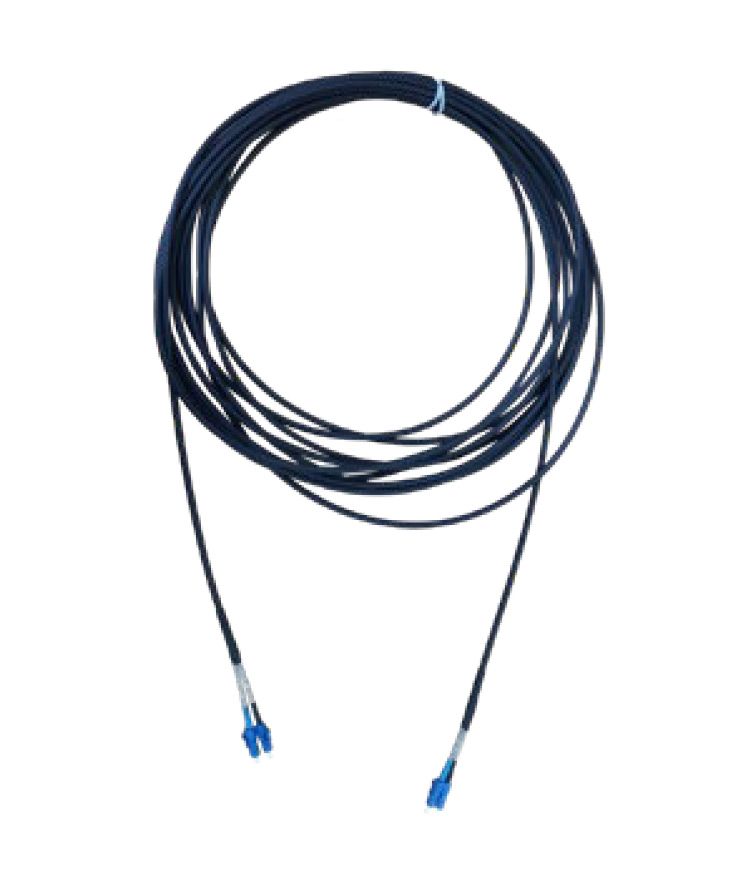

Duplex, Single-mode, LC/PC-LC/PC Patch with Outer Wire Mesh Fiber

Manufactured in all sizes, 3 mm fiber, fiber type: 0S1 G652-D, With SC/PC SC/APC LC/PC FC/PC FC/APC E2000/APC E2000/PC ST/PC connectors
Exterior cover: Black PVC – LSZH
Measurement: Insertion Loss 0.20-0.40
Return: PC > 50 APC >60
Construction details:
– Connectorized ends with metal protection
– Heat-shrinkable protection against dust and moisture
– Pulling eye

Multi-mode Patchcord

Duplex, Multi-mode, LC/PC-LC/PC Patch with Outer Wire Mesh Fiber

Manufactured in all sizes, fiber type: 62,5/125 OM1, 50/125 OM2, OM3, OM4, OM5, With SC/PC LC/PC FC/PC E2000/PC ST/PC MTRJ/PC connectors
Exterior cover: Black PVC – LSZH
Measurement: Insertion Loss 0.20-0.40
Return: PC > 50 APC >60
Construction details:
– Connectorized ends with metal protection
– Heat-shrinkable protection against dust and moisture
– Pulling eye
